Overview

Office Maps let employees see an interactive floor plan of your workplace and find bookable resources at a glance. This article walks you through creating a new office map, uploading a floor plan image, and placing your first resources on the map.

Before you start: You need the Places admin role to manage Office Maps.

Step 1: Open Office Maps and start a new map

  1. In the Admin Portal, navigate to Office Maps using the left-hand navigation.
  2. Review any existing maps listed in the table.
  3. Click + Add new in the top-right corner to open the Create Office Map dialog.

Step 1 — Office Maps list

Step 2: Select a location for the map

  1. In the Create Office Map dialog, expand your community or building by clicking its name.
  2. Select the specific location (floor, zone, or space) you want to attach the map to. Only locations that do not already have an office map are selectable.
  3. A preview of the selected location appears at the bottom of the dialog.
  4. Click Create Office Map to create the map and open the editor. If the Create Office Map button is disabled, make sure you have selected a valid location.

Step 2 — Create Office Map dialog

Note: Each location can have only one office map. Locations that already have a map are indicated with a map icon and cannot be selected.

Step 3: Explore the map editor

After the map is created, the editor opens automatically.

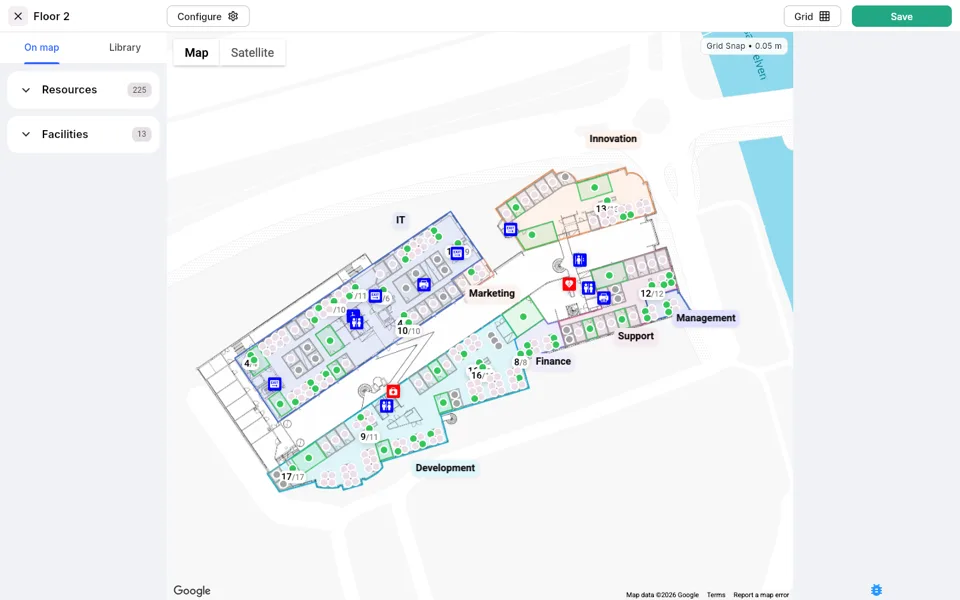

Step 3 — Office map editor

The editor is divided into three main areas:

Area Purpose
Left panel Lists objects currently on the map (On map tab) or available to add (Library tab)
Map canvas Interactive map where you position resources and facilities
Right panel Appears when an object is selected; shows its properties

The toolbar at the top provides access to Configure, Grid, and Save.

Step 4: Upload your floor plan image

  1. Click Configure in the top toolbar to open the Configure panel on the right.
  2. Under the Image section, click the image icon next to Add image (or Change image if one already exists).
  3. In the file picker, select your floor plan file. Supported formats are webp, png, jpg, jpeg, and avif.
  4. Once uploaded, the floor plan appears as an overlay on the map canvas.
  5. To reposition or resize the image, enable the Edit image toggle. Hold Ctrl while dragging to rotate the image.

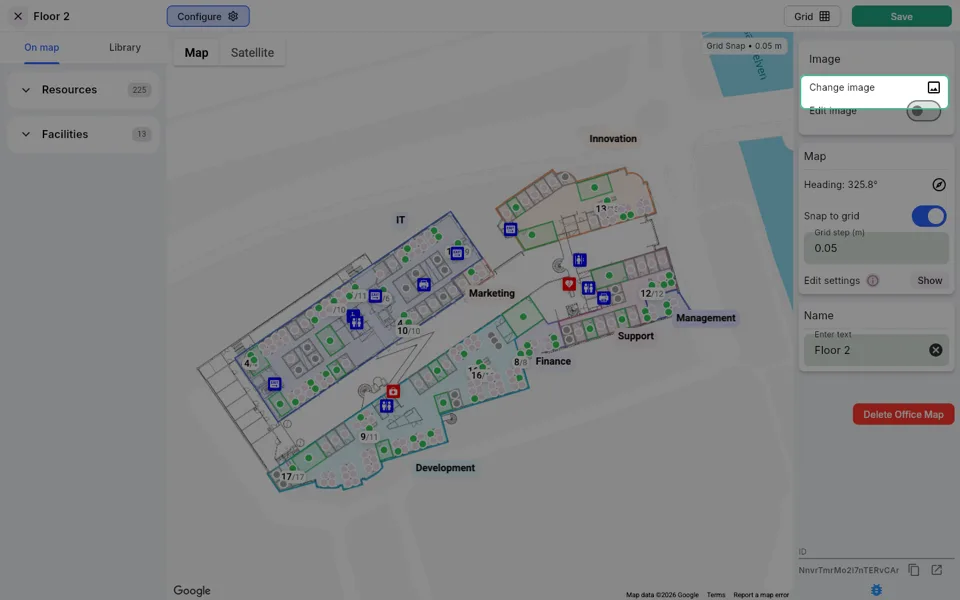

Step 4 — Configure panel with image options

The Configure panel also lets you:

  • Adjust the map Heading (compass rotation).
  • Enable or disable Snap to grid and set the Grid step in metres.
  • Rename the map under the Name field.
  • Review or update Edit settings (default sizes and properties for different object types).

Step 5: Browse the Library to find resources

  1. In the left panel, click the Library tab.
  2. Expand the Resources section to see all bookable resources that belong to this location but have not yet been placed on the map.
  3. Resources are grouped by type and cluster. Use the expand/collapse arrows to browse sub-groups.
  4. You can also expand the Facilities section to see available facilities.

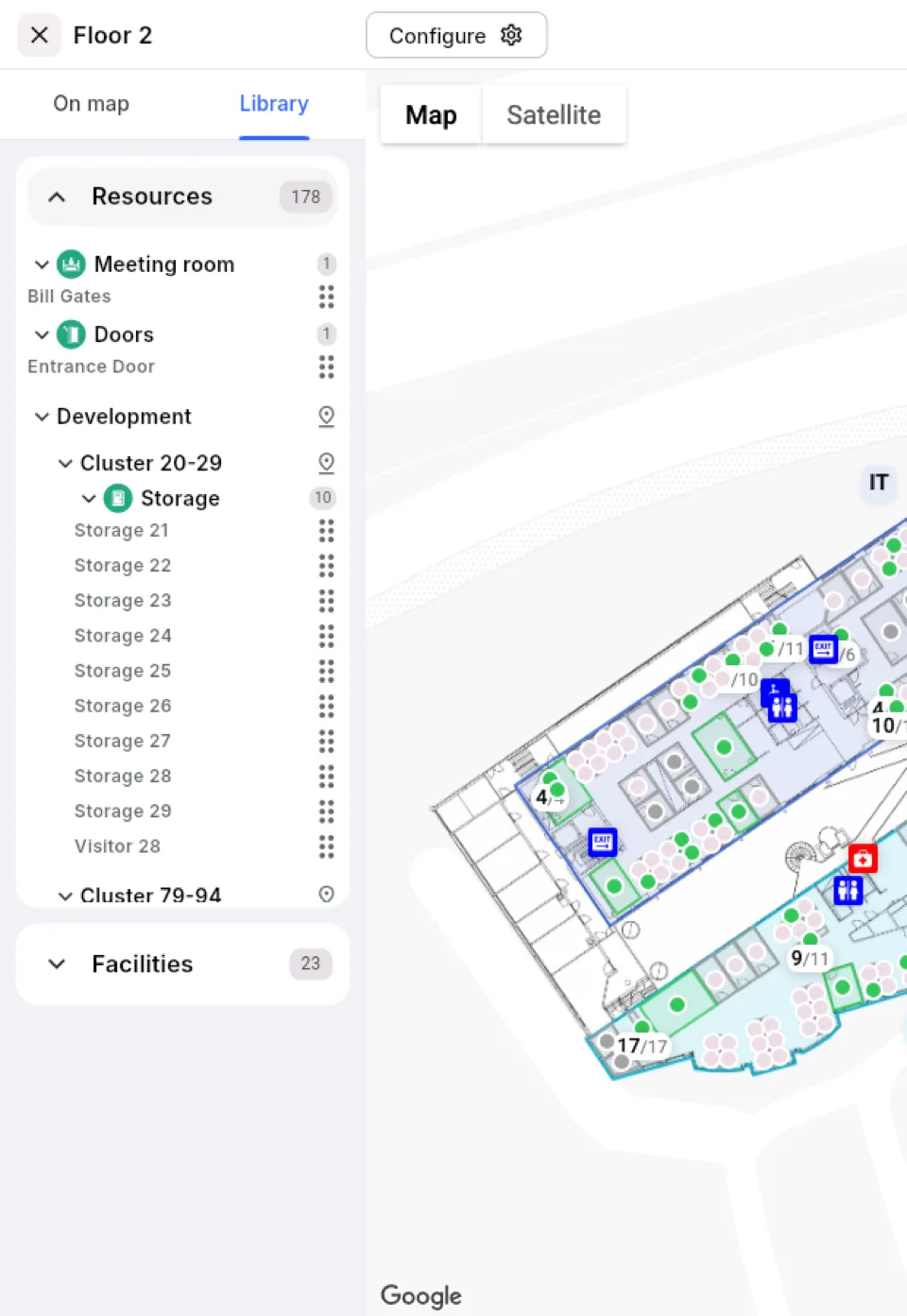

Step 5 — Library tab with Resources expanded

Step 6: Drag a resource onto the map

  1. In the Library tab, find the resource you want to place.
  2. Click and drag the drag handle (the grid of dots) next to the resource name onto the map canvas.
  3. Drop the resource at the correct position over your floor plan image.
  4. The resource marker appears on the canvas and is labelled with the resource name.
  5. Click the marker to select it and view or edit its properties in the right panel (marker style, custom icon, annotations, area, and more).
  6. Repeat for additional resources.

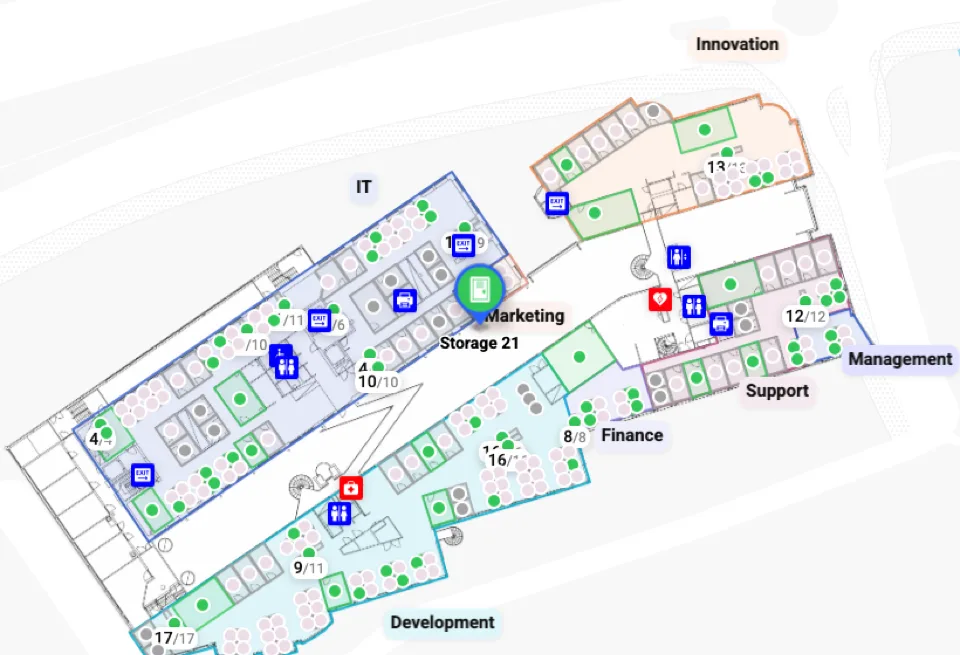

Step 6 — Resource placed on the map canvas

Step 7: Save the map

  1. When you are satisfied with the resource positions, click Save in the top-right corner of the editor.
  2. A confirmation dialog appears asking "Do you want to save changes?"
  3. Click Save to confirm, or No to go back without saving.

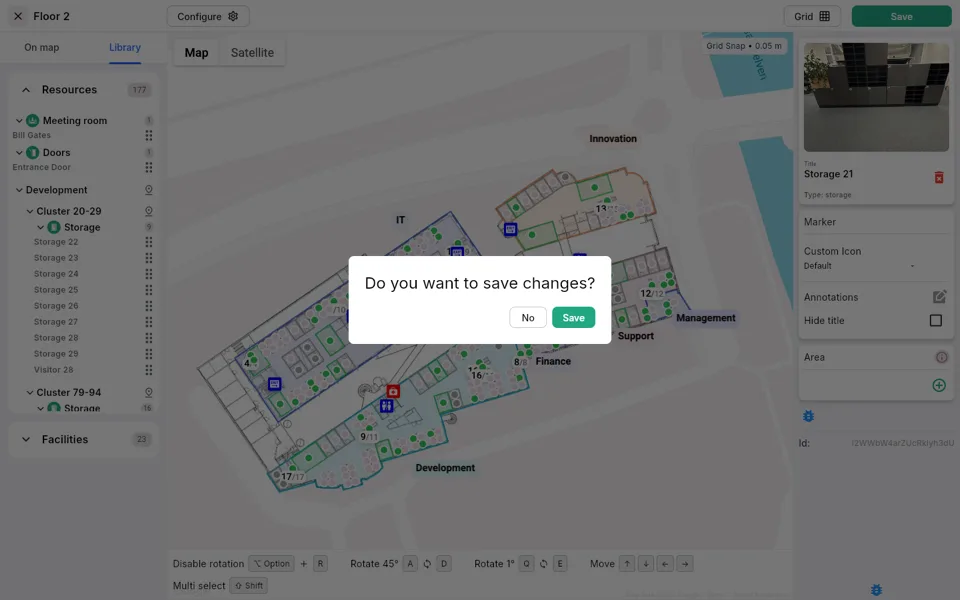

Step 7 — Save confirmation dialog

A success message confirms that the office map was saved. The map is now visible to employees in the Awaio app.

Tips

  • Grid snapping helps you align resources precisely. Adjust the Grid step value in the Configure panel to match the scale of your floor plan.
  • Keyboard shortcuts are shown at the bottom of the editor when a resource is selected: use Q/E to rotate by 1°, A/D to rotate by 45°, and the arrow keys to nudge position.
  • To update the floor plan image later, return to Edit from the Office Maps list and use Change image in the Configure panel.
  • Use the On map tab in the left panel to quickly see which resources and facilities are already placed, and their counts.
  • To remove an office map entirely, open Configure and click Delete Office Map at the bottom of the panel.
